Capabilities and custom manufacturing
Machining and secondary operations

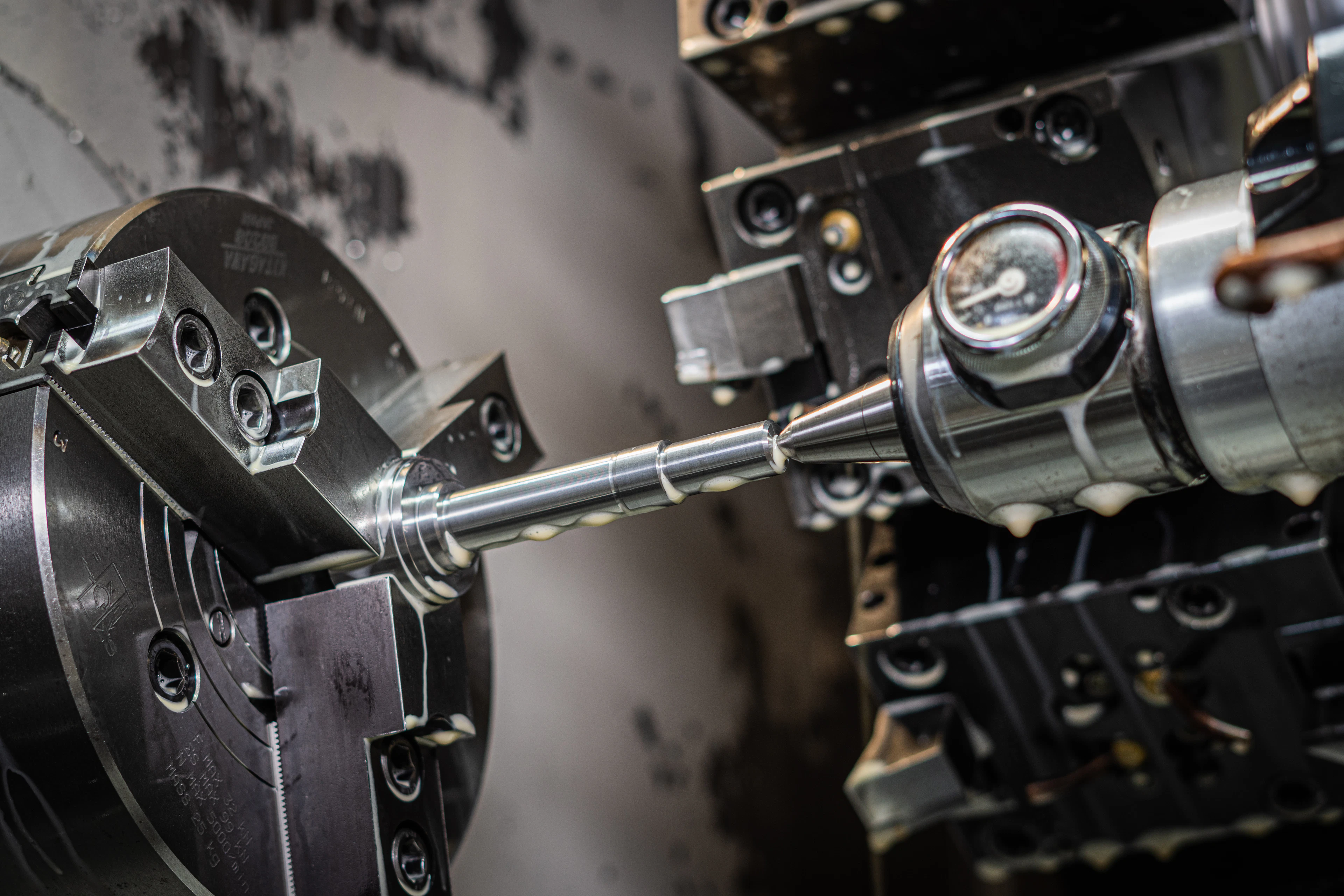

CNC turning
Turning centres for tight tolerances, complex profiles and fast changeovers between part numbers.
Ø 6 to 65 mm ±0.01
Traub / cam auto machining
Cam-driven automats for high-volume brass parts at the lowest cost per piece.
Ø 3 to 42 mm high volume
VMC machining
Vertical machining centres for flats, pockets, cross holes and milled features.
600 x 400 x 400 mm
Threading
Thread cutting, tapping and rolling in metric, BSP, NPT and unified forms, gauged to class.
M2 to M48 6g / 6H
Knurling
Straight, diamond and helical knurls for inserts, thumb nuts and grip surfaces.
0.5 to 1.2 mm pitch
Drilling & cross-drilling
Axial and cross holes, counterbores and tapped holes on dedicated secondary machines.
Ø 0.8 mm upward
Secondary operations
Slotting, grinding, deburring, tumbling and assembly of multi-part components.
In-house
Plating & finishing coordination
Nickel, tin, chrome, silver, zinc, passivation and anodising through qualified partners, inspected on return.
Thickness verified
Size and tolerance ranges
Typical achievable values. Tighter limits are possible on specific features; ask us.
| Process | Size range | Tolerance | Materials |
|---|---|---|---|
| CNC turning | Ø 6 to 65 mm | ±0.01 mm | All |
| Sliding-head turning | Ø 2 to 20 mm | ±0.01 mm | Brass, SS, Cu |
| Cam automat turning | Ø 3 to 42 mm | ±0.03 mm | Brass, MS, Al |
| VMC milling | 600 x 400 x 400 mm | ±0.02 mm | All |
| Thread rolling | M2 to M16 | Class 6g | Brass, MS, SS |
| Cross-drilling / tapping | Ø 0.8 mm up, to M12 | ±0.05 mm position | All |
Custom development process
Drawing-based and sample-based development follow the same path, with an approval gate before volume.
- 01
Share your drawing or sample
Upload files through the RFQ form or send a physical sample to the factory.
- 02
Feasibility and quotation
Engineering review with a clear quote, notes on tolerances and suggested alternatives.
- 03
First-off samples
Samples produced on the intended process, supplied with a dimensional report.
- 04
Approval and PPAP-style documentation
You approve the sample; we freeze the process and inspection plan.
- 05
Volume production
Scheduled against your call-offs with dispatch dates confirmed per order.
From prototype to production
Development lots run on CNC to prove fit and function. Once approved, the part moves to the most economical process (often a cam automat for brass) with the same inspection plan, so your approval carries over.
Packaging and export documentation
Part-wise packing
Poly bags or boxes by count, labelled with part number, lot and quantity.
Moisture and tarnish protection
VCI bags and desiccant for sea freight and plated parts.
Palletisation
Heat-treated wooden pallets or cartons strapped and wrapped for export.
Export documents
Commercial invoice, packing list, certificate of origin and inspection reports.
Have a drawing ready?
Upload it with the material and annual quantity. An engineer replies with a costed quote.
